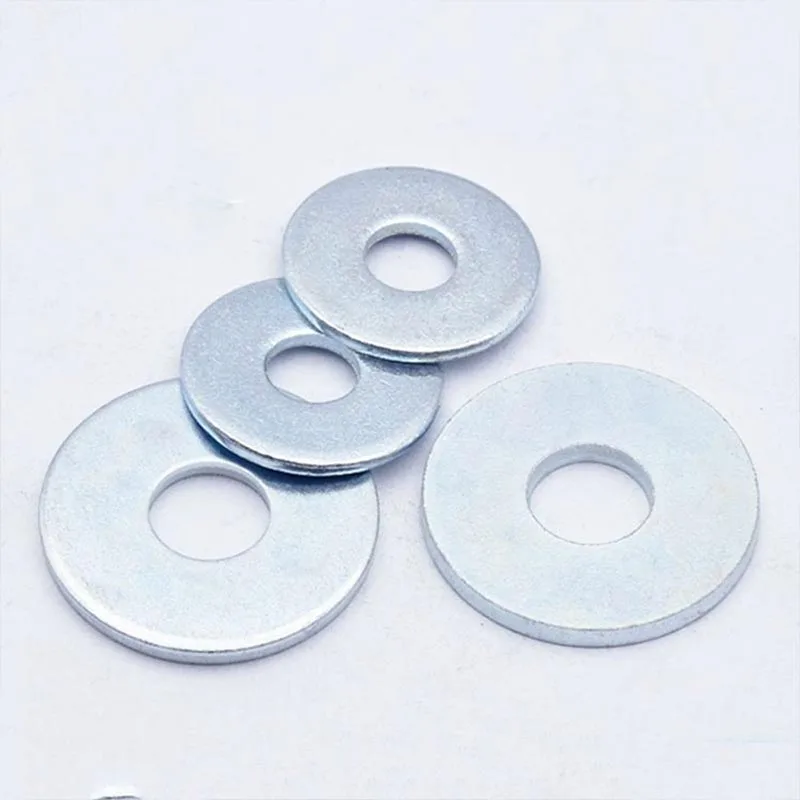

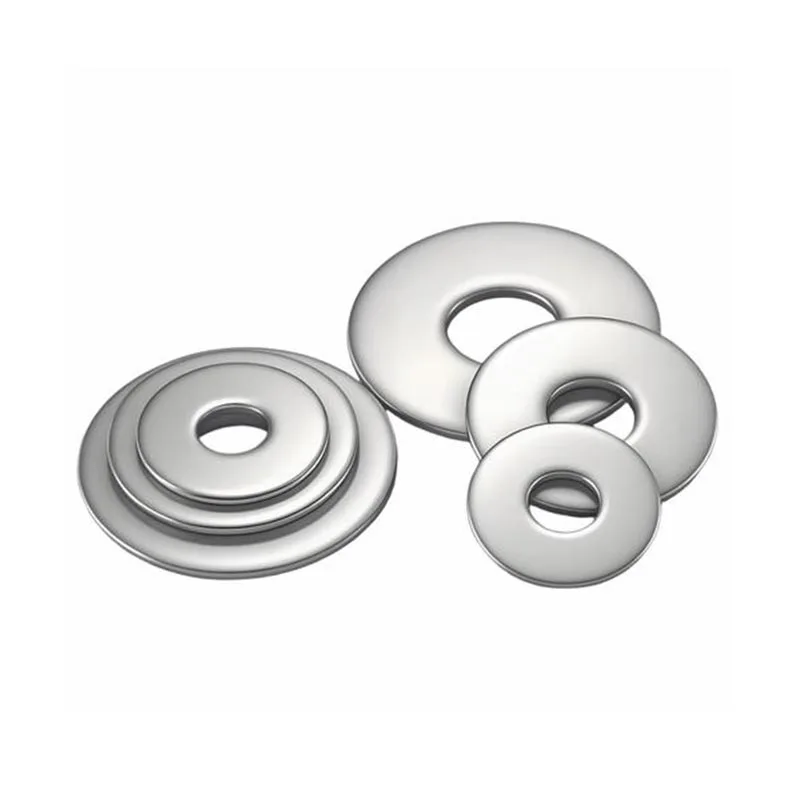

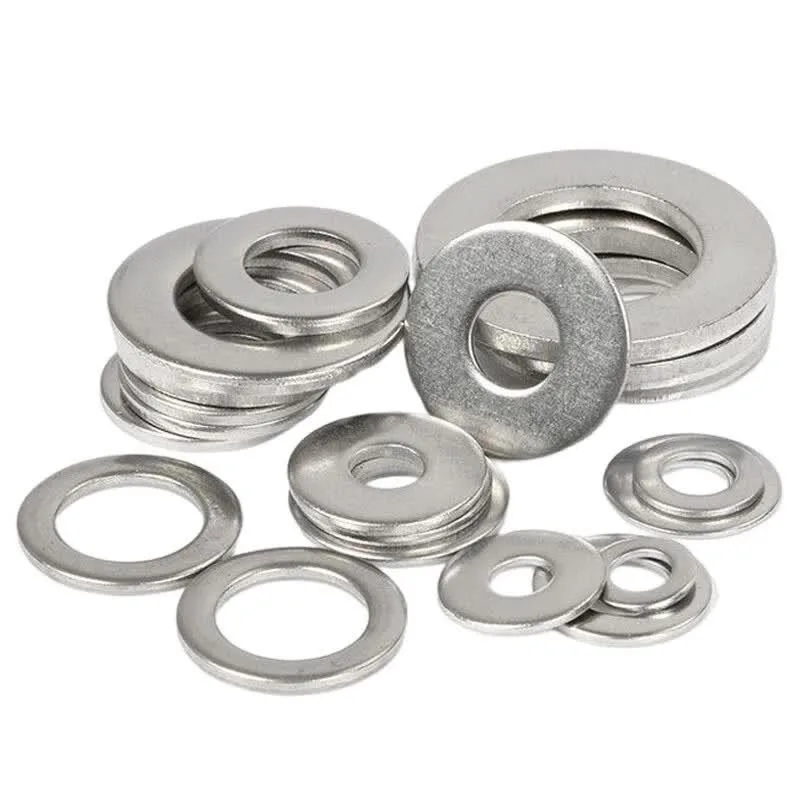

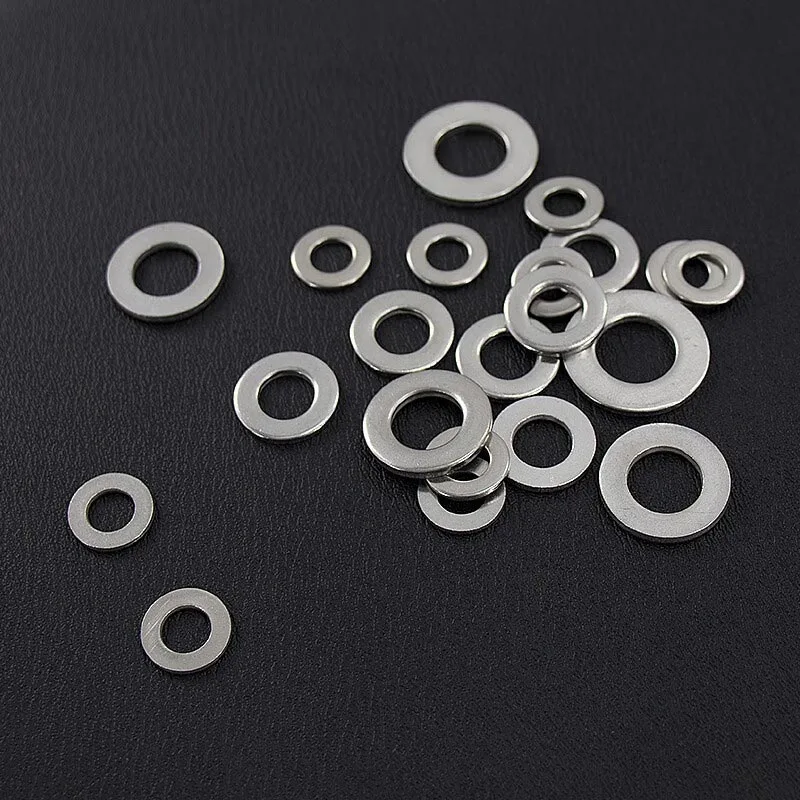

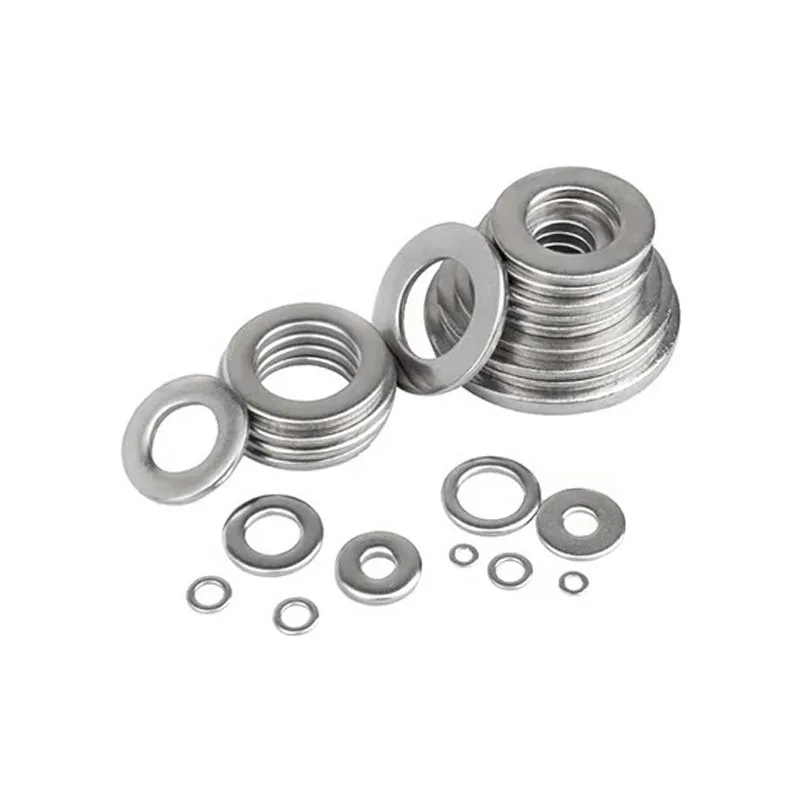

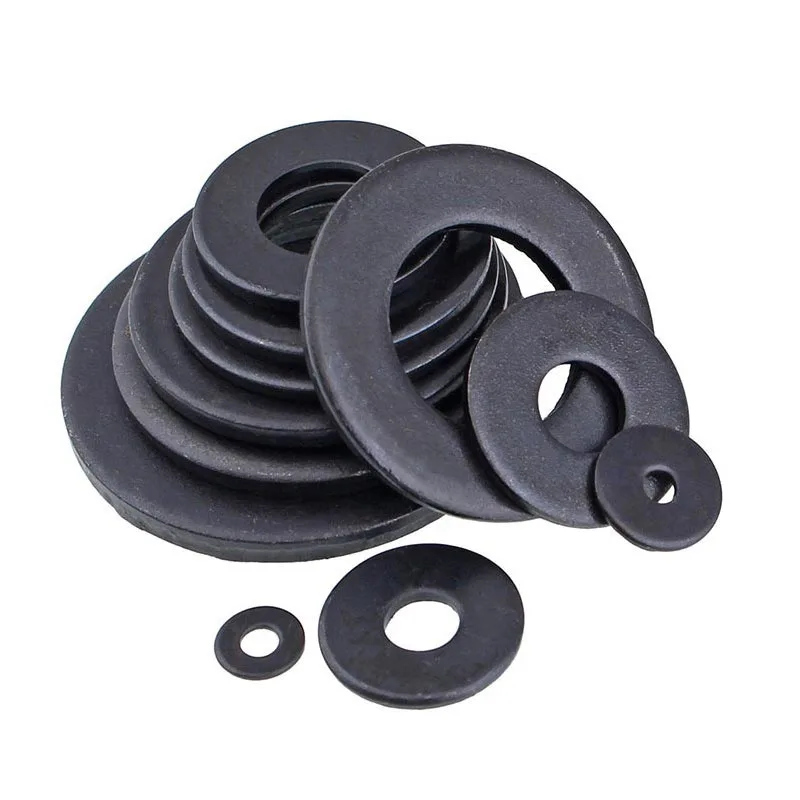

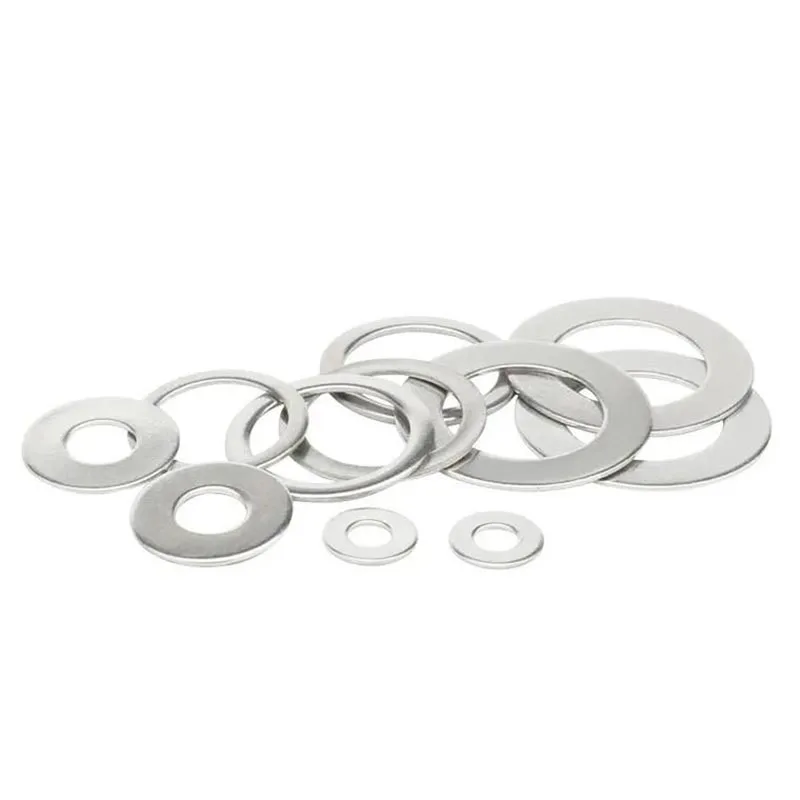

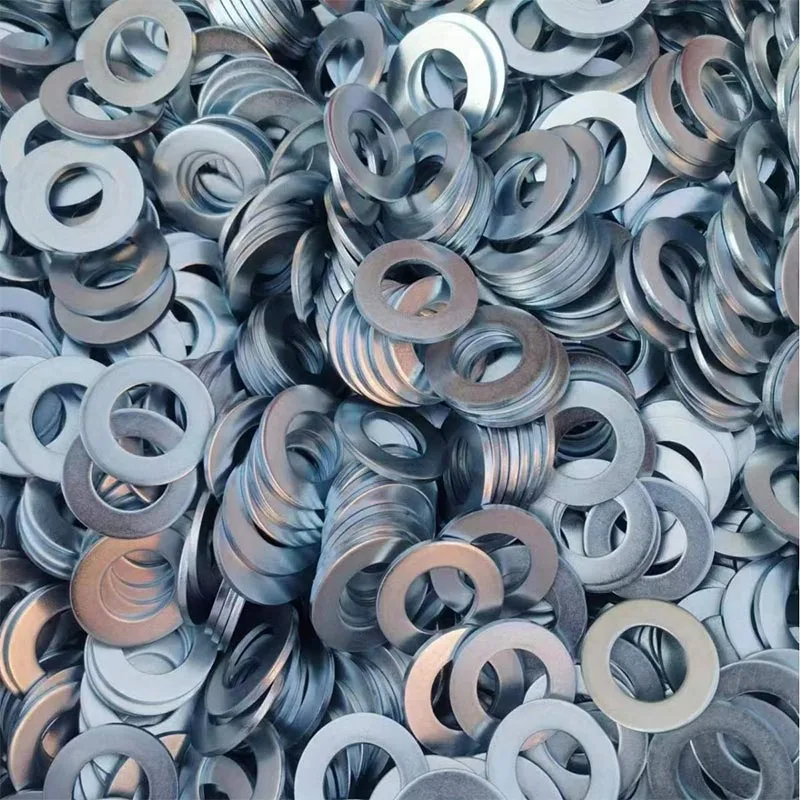

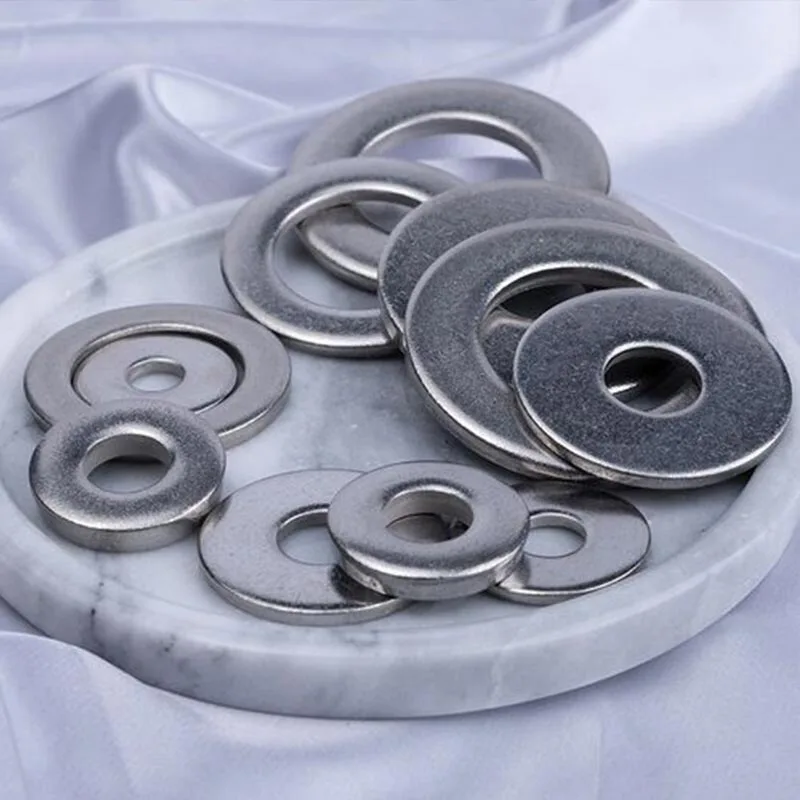

Flat Washer

The Flat washer manufactured by YS STEEL's supplier is fully coated on both the front and back surfaces and the inner edge, suitable for long-term outdoor exposure conditions. It can be used in combination with 4.8, 8.8, and 10.9 grade bolts and nuts.

Product Testing

Before each batch of Flat washers leaves the factory, multiple-dimensional tests are conducted to ensure the stability of engineering use:

1. Dimensional tolerance testing is verified using micrometers and calipers for the inner and outer diameters, thickness, and flatness, controlling the stamping deformation.

2. Full appearance inspection to check for burrs, missing materials, and peeling surface defects.

3. Zinc layer testing includes thickness and adhesion tests to verify the bonding strength of the protective coating.

4. Hardness testing to confirm the pressure-bearing performance of the substrate and avoid deformation due to pressure.

5. Salt spray testing simulates the humid and salty coastal environment to evaluate the long-term outdoor corrosion resistance.

6. All test records are archived, and test reports can be provided along with the products to meet the requirements for overseas project entry and acceptance.

Core Technical Parameters

Standard reference parameters, custom‑produced according to project drawing requirements

Product features

- Precise stamping process, excellent flatness, no burrs on the surface, uniform tightening force, avoiding local indentation.

- Fully treated with hot-dip galvanizing, continuous zinc layer on both inner and outer surfaces, resistant to moisture, salt, and coastal salt spray erosion.

- Reserve internal hole coating assembly gap, matching with corresponding specification bolts, smooth installation, and not prone to jamming.

- Wide selection range of thickness, complete specifications from 1.5 to 4.0mm, adjustable according to load size.

- Can be combined with spring washers for use, pressure dispersion + anti-loosening dual protection, enhancing node reliability.

- Flexible supply form, standard parts in stock, support custom non-standard drawings, and packaging for export of complete fasteners sets.

Notes for Attention

1. The flat washer only serves to distribute pressure and protect the workpiece. It does not have the elasticity for anti-loosening function by itself. For vibration conditions, it is recommended to use it together with a spring washer.

2. During construction, strictly follow the designed torque to lock the bolts. Excessive torque may cause the washer to deform under pressure, reducing the pressure protection effect.

3. During transportation and installation, avoid hitting and scratching the zinc layer with hard objects. The damaged areas of the coating will be prone to rusting first, shortening the outdoor service life.

4. When selecting the model, choose the appropriate thickness based on the actual load. Thin washers are not suitable for heavy-load pressure-bearing nodes.

5. Store in a dry and ventilated environment. Take protective measures when stacking to prevent early rusting due to long-term dampness.

FAQ

Q1: Can flat washers be used alone in vibration-type engineering joints?

A1: They can be used alone in static light-load scenarios; for outdoor joints with long-term wind vibration, it is recommended to assemble them in combination with spring washers.

Q2: Can special flat washers with enlarged outer diameter or inner hole be customized?

A2: Customization is supported. The inner diameter, outer diameter, and thickness can all be adjusted for production according to the customer's drawings.

Q3: Can your company's flat washers be packaged together with hot-dip galvanized bolts for shipment?

A3: Yes, they can be combined with bolts, nuts, and spring washers for shipment. The packaging can be unified.

Q4: What are the delivery times for standard products and customized products?

A4: Standard specifications will be shipped within 3-6 working days; non-standard customized orders have a production cycle of 7-14 working days.

Q5: Can the product provide quality inspection reports for overseas project approval?

A5: Quality inspection documents can be provided for each batch to meet the requirements of overseas project acceptance and customs data submission.

Q6: How to apply for samples? Is there a sample fee?

A6: Standard specifications are free; the freight is borne by the customer; non-standard customized samples require a small processing fee.

Q7: Can the outer packaging be printed with the customer's brand logo? Can OEM branding be supported?

A7: OEM is supported. The packaging labels and logos can be customized according to customer requirements.
