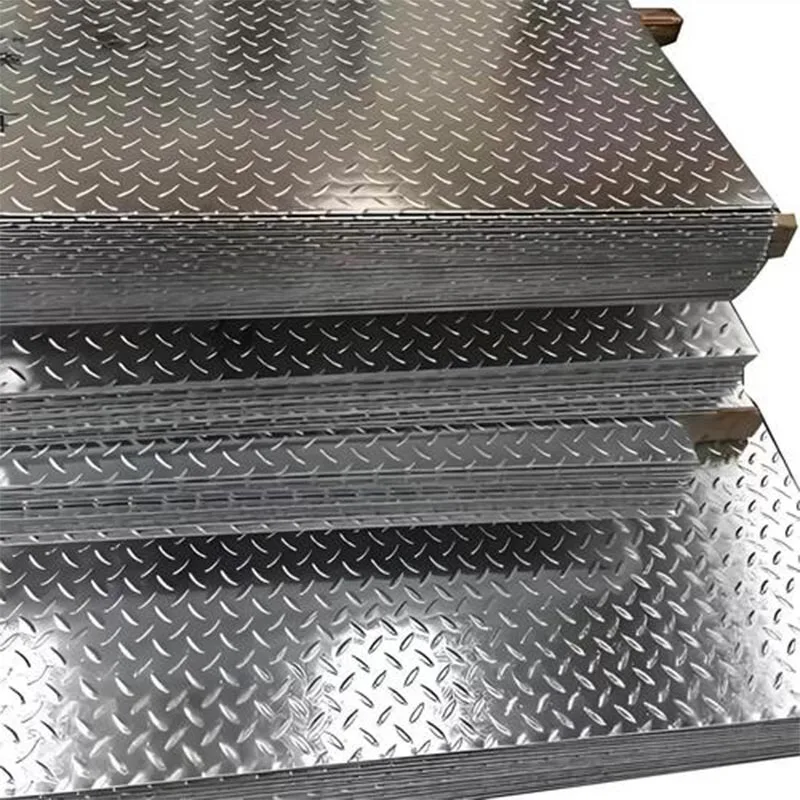

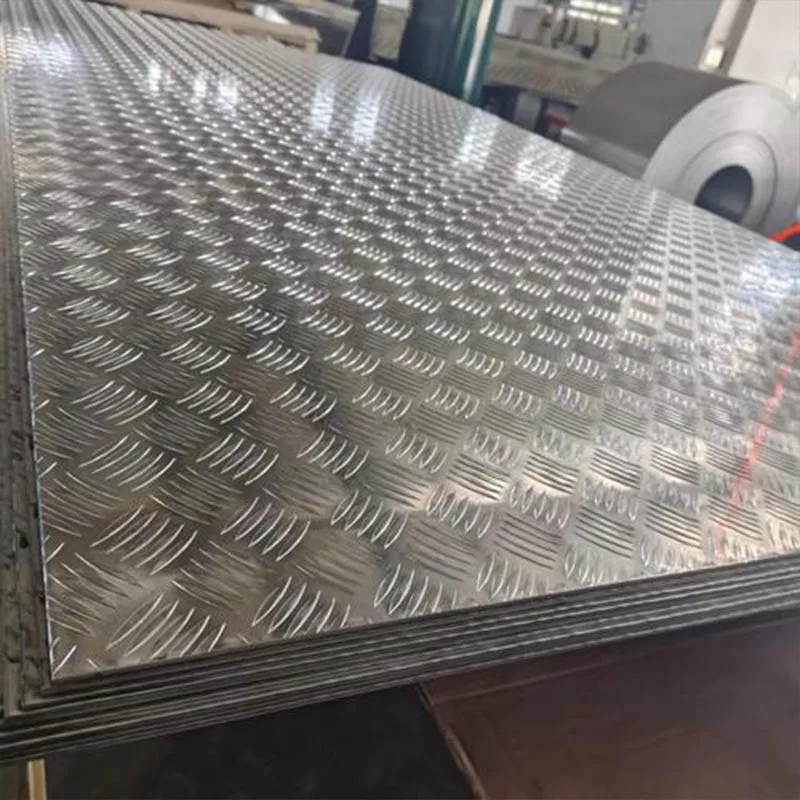

Our industrial diamond-pattern steel plates are structural steel products designed for industrial infrastructure, heavy-duty platforms, and anti-slip walkways. Manufactured from high-quality carbon structural steel using an integrated high-temperature hot-rolling process, the plates feature a uniform, raised anti-slip pattern.

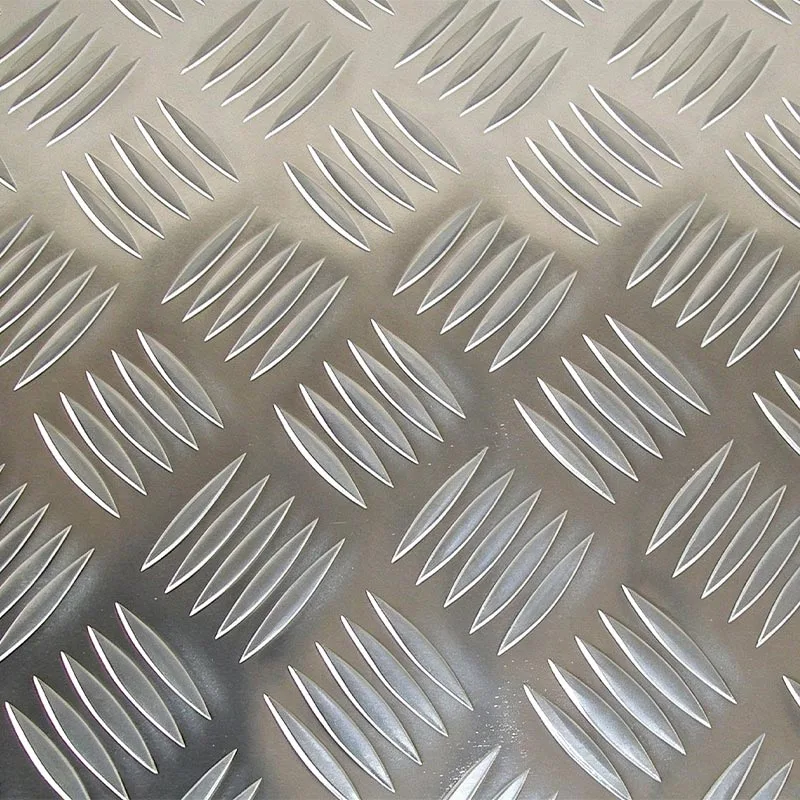

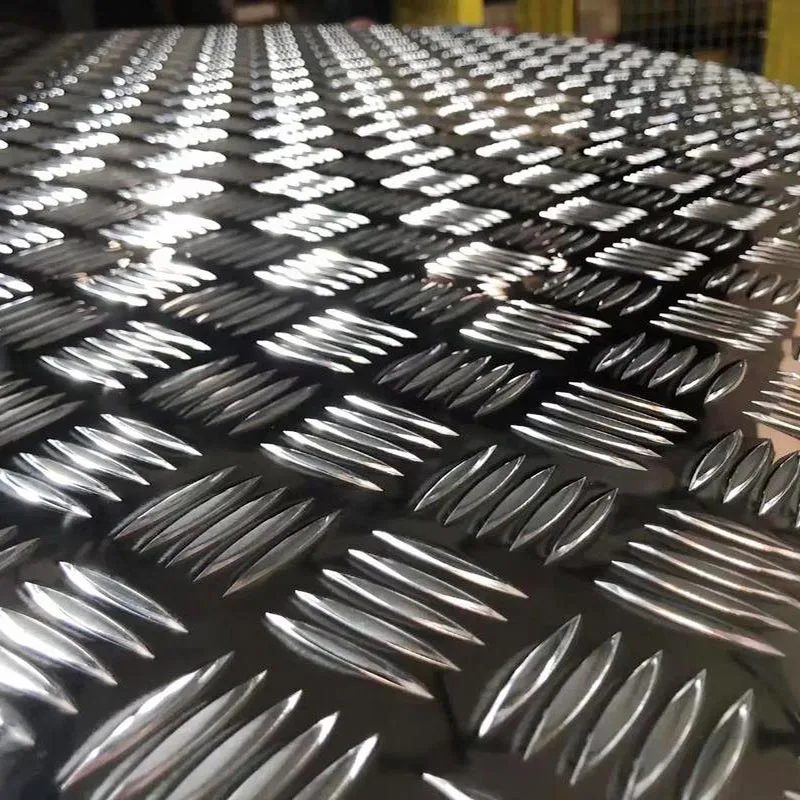

Common pattern types include diamond, lentil (bean), and round-bean designs, available in materials ranging from standard Q235B carbon steel to high-strength Q355B carbon steel.
We strictly adhere to international standards, ensuring products that offer high strength, wear resistance, impact resistance, and safe anti-slip performance.
With high dimensional accuracy and a flat surface free from delamination or cracks, these plates are ready for immediate cutting, welding, and installation. They are widely used in heavy-duty, anti-slip applications such as industrial plants, port terminals, shipbuilding, and municipal engineering.
Diamond Pattern Steel Plate for Industrial are produced using a precision hot-rolling process with strict temperature control. Unlike standard plates that undergo secondary embossing, our products feature a pattern formed integrally with the base material during the hot-rolling process.
The production involves five core stages—multi-pass rolling, temperature-controlled microstructural refinement, surface finishing and leveling, dimensional tolerance verification, and non-destructive testing—effectively eliminating quality issues such as internal porosity, gas pockets, delamination, or incomplete patterns.
The integrated structure ensures the pattern never detaches from the plate, maintaining stable performance under long-term heavy loads and friction; this is the preferred manufacturing method for high-end industrial engineering projects.
| Parameter | Specification |
| Main Materials | Q235B, Q355B |
| Common Patterns | Lenticular, Diamond, Round Bean |
| Thickness Range | 2.0mm–12.0mm (substrate thickness, excluding pattern protrusion) |
| Standard Width | 1000mm, 1260mm, 1500mm |
| Length | Custom Fixed Size |
| Execution Standards | GB/T 3277, ASTM A786, EN 10025, JIS G3101 |
| Core Features | High anti-slip, high load-bearing, wear-resistant, impact-resistant, easy processing, excellent weather resistance |
| Application Scenarios | Industrial factory platforms, stair treads, docks & ports, ship decks, municipal engineering, heavy equipment bases, warehouse flooring, workshop anti-slip walkways, vehicle floors |
The products utilize high-quality Q235B and Q355B carbon steel substrates. Through precision hot-rolling, the internal microstructure becomes uniform and dense, ensuring consistent compliance with yield and tensile strength standards. The plate exhibits excellent resistance to compression, bending, and impact. It withstands prolonged static heavy loads and dynamic rolling loads without deformation, warping, or structural collapse, meeting safety requirements for long-span industrial platforms, heavy equipment bases, and heavy-duty port flooring, thereby extending the overall service life of the project.
The 3D raised tread pattern is formed integrally during hot rolling, ensuring uniform height, consistent texture, and a high coefficient of friction. Compared to flat steel or coated anti-slip plates, it offers superior, long-lasting slip resistance. It performs reliably in complex industrial environments: including dry, wet/pooled water, oily, and dusty conditions, significantly reducing the risk of slipping for personnel, material handling, and equipment traffic.
The tread pattern is durable and resistant to detachment or wear-related failure; it requires minimal maintenance and ensures safe, stable performance over the long term.
The Diamond Pattern Steel Plate for Industrial features uniform surface hardness and excellent resistance to wear, scratching, and compression, allowing it to withstand high-stress conditions such as frequent vehicle traffic, material friction, and equipment impacts.
It also boasts outstanding weather and oxidation resistance, making it resistant to rust and aging in outdoor environments. It eliminates the need for frequent anti-corrosion coating, making it ideal for high-wear outdoor applications such as wharves, ports, ship decks, and open-air industrial platforms.
The base material offers a balance of toughness and ductility, supporting various secondary processing operations: including cutting, welding, bending, punching, leveling, and edge trimming, without cracking, edge chipping, delamination, or warping.
With high dimensional accuracy, controlled thickness tolerances, and a flat surface, the plates ensure a precise fit during on-site installation. They can be fixed via direct welding, bolting, or full-surface paving without complex pre-treatment, effectively simplifying construction, shortening project timelines, and reducing on-site labor and material costs.
Strictly complies with major domestic and international industrial standards such as GB/T 3277, ASTM A786, EN 10025, and JIS G3101. The specifications for the two primary material grades—Q235B and Q355B, align with global standards for industrial infrastructure, marine engineering, and factory construction.
Each batch comes with complete material certificates, mechanical test reports, and factory quality inspection documents. We support third-party inspections by authoritative bodies like SGS, BV, and TUV, meeting requirements for cross-border customs clearance and international project acceptance.
A standard carbon structural steel offering excellent cost-performance, good toughness, and ease of processing. Suitable for general load-bearing and anti-slip applications such as industrial plant platforms, workshop walkways, warehouse flooring, stair treads, and light-vehicle decking; it is a staple material for general-purpose industrial anti-slip surfacing.
A high-strength, low-alloy steel offering superior load-bearing capacity, impact resistance, and wear resistance compared to Q235B. Specifically designed for demanding industrial environments, such as port terminals, ship decks, heavy equipment bases, heavy-duty engineering platforms, and areas subject to frequent heavy traffic—where high load-bearing, durability, and safety are critical.
| Comparison Item | Q235B Checkered Steel Plate | Q355B Checkered Steel Plate |
| Material Property | Ordinary carbon structural steel | Low-alloy high-strength structural steel |
| Yield Strength | ≥235MPa | ≥355MPa, strength increased by about 30%+ |
| Load-Bearing & Impact Resistance | Meets conventional static load-bearing requirements, average impact resistance | Excellent heavy load-bearing capacity, outstanding resistance to impact, rolling and deformation |
| Wear & Weather Resistance | Durable for conventional indoor working conditions, average outdoor corrosion resistance | Better wear resistance, oxidation resistance and salt spray resistance, suitable for harsh outdoor working conditions |
| Application Scenarios | Factory walkways, warehouse flooring, indoor stairs, light equipment bottom plates, light-load municipal engineering | Ports, docks, ship decks, heavy-duty platforms, heavy machinery bases, high-frequency rolling outdoor scenarios |
| Processing Performance | Good plasticity, easy for bending and welding, low processing cost | Higher hardness, strong processing stability, not easy to deform |
| Cost-Effectiveness Positioning | Cost-effective, suitable for bulk procurement of conventional engineering projects | Longer comprehensive service life, lower comprehensive operation and maintenance costs for heavy-duty projects |
Material Selection Advice: Choose Q235B for indoor, light-load, and standard anti-slip projects to optimize costs. For outdoor, port/marine, high-traffic, and heavy-load engineering projects, Q355B is recommended to prevent future deformation or wear-related replacement, thereby enhancing project safety and service life.
In the first half of 2025, YS STEEL supplied more than 650 tons of Q235B Diamond Pattern Steel Plate for Industrial for a large port renovation and expansion project in the Philippines, applied to anti-slip paving and load-bearing structure construction of dock working platforms, loading passages and pedestrian walkways.
The port operates under harsh perennial conditions of sea wind, salt spray, humidity and ponding, requiring extremely strict standards for anti-slip performance, load-bearing capacity and weather rust resistance.
We manufactured products in strict accordance with international port engineering standards, strictly controlling substrate thickness, pattern height and mechanical properties to avoid common quality problems such as thin substrate and uneven patterns, ensuring the plates remain undeformed under heavy load, non-slip in humid conditions and rust-resistant for long-term service.
The full batch was delivered in advance and successfully passed SGS third-party inspection. The convenient and high-fitting on-site paving accelerated project completion, and an annual framework cooperation has been established for continuous supply.
In 2025, we customized and supplied 580 tons of 3.0mm–8.0mm Q355B high-strength patterned steel plates for standardized factory projects of a large Malaysian industrial park, used for stair treads, second-floor operation platforms and equipment protective walkways.
The client's batch standardized construction required high consistency in plate size, flatness and load-bearing uniformity as well as excellent processing adaptability.
We provided targeted one-stop deep processing services including fixed-length flattening, precision cutting and deburring pretreatment, enabling direct installation after delivery and greatly saving on-site construction time and labor costs.
The batch products delivered excellent anti-slip effect and stable load-bearing performance without deformation or warping, perfectly adapting to high-frequency industrial traffic conditions with zero quality complaints and zero delivery delay. We have become the long-term designated steel supplier for the industrial park.
A domestic heavy machinery manufacturer purchased our Q235B patterned steel plates for the production of large stamping and lifting equipment bases, load-bearing gaskets and workshop maintenance anti-slip platforms.
Heavy-duty machinery scenarios feature large load and strong mechanical impact, requiring strict standards for steel flatness, structural strength and deformation resistance to avoid warping, deformation and cracking under pressure.
By optimizing rolling technology and precisely controlling substrate thickness tolerance and internal structure, we ensured uniform overall strength and stable load-bearing performance to resist long-term equipment compression and vibration impact.
We also provided precision cutting customization according to client equipment drawings for finished component delivery, supporting standardized assembly line production. The products have maintained stable operating conditions with zero quality problems, realizing continuous repeat cooperation.
1. Full Specification Coverage: Various thicknesses and patterns in stock, supporting non-standard size customization for special working conditions;
2. Precision Deep Processing: One-stop services including flattening, precision cutting, punching, bending, deburring and sandblasting for ready-to-use delivery;
3. Strict Traceable Quality Control: Full-process management from raw material selection and rolling forming to pattern inspection and finished product acceptance with stable and traceable batch quality;
4. Efficient Global Delivery: Mass spot inventory, fast production and shipment, FCL/LCL cross-border shipment and complete documents for smooth customs clearance;
5. Professional After-Sales Service: One-on-one technical docking, parameter selection guidance, solution optimization and full-process after-sales guarantee to eliminate procurement risks.
For all our patterned steel plates, the stated thickness refers to the base plate itself, strictly adhering to GB/T 3277, ASTM, and EN international standards. It excludes the height of the surface pattern; our specifications are accurate and honest, with no inflated figures or undersized materials.

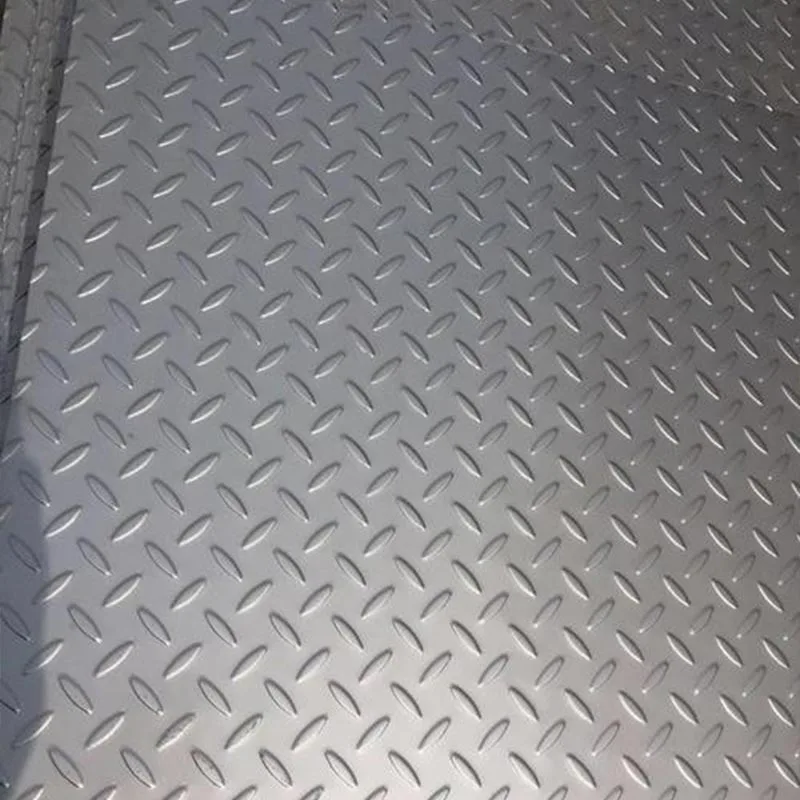

The diamond pattern offers uniform load distribution and balanced slip resistance; it is the most versatile option, suitable for the vast majority of industrial platforms, stair treads, and workshop walkways. The lentil (bean-shaped) pattern features higher protrusions and superior resistance to crushing and abrasion, making it ideal for high-wear environments such as ports, docks, and areas with heavy vehicle traffic. The round-bean pattern offers a neat, aesthetically pleasing surface with moderate friction, making it commonly used in municipal engineering and as anti-slip flooring for light equipment.
The Diamond Pattern Steel Plate for Industrial applications is manufactured using an integrated hot-rolling process that forms the base material and the pattern simultaneously; it involves no secondary pressing or bonding, resulting in a monolithic structure. Under normal industrial conditions involving heavy loads, friction, and crushing forces, the pattern will not peel, detach, or crack. Its anti-slip performance remains stable and durable, eliminating the need for frequent maintenance or refurbishment.

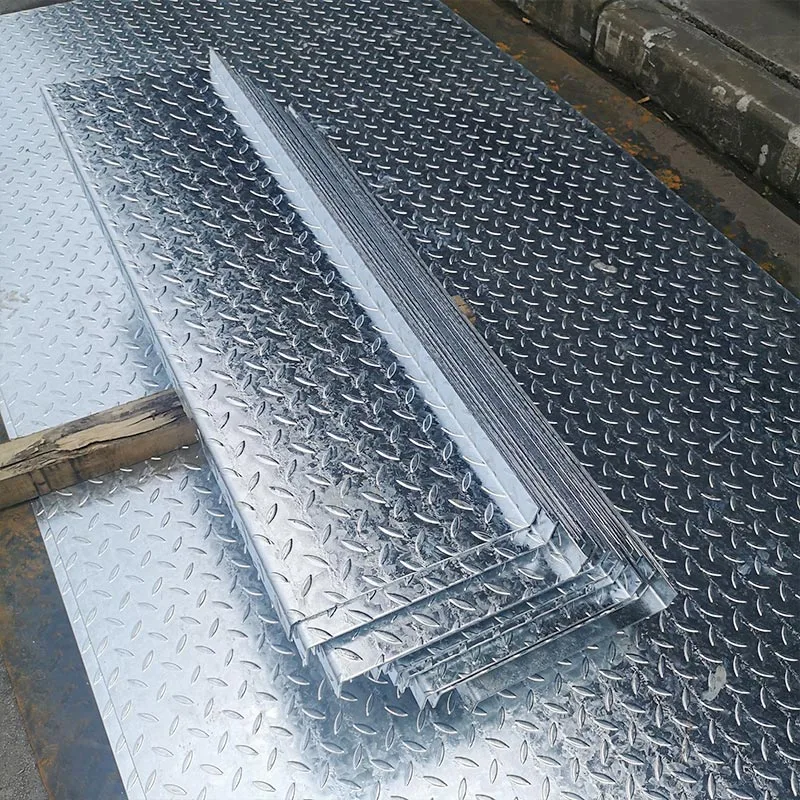

We support a full range of customization services, including cutting to specific lengths, leveling, precision cutting, bending, punching, and deburring. The base material possesses stable ductility; precision machining does not cause edge chipping, warping, delamination, or pattern damage. Structural integrity, slip resistance, and load-bearing capacity remain unaffected, allowing for immediate on-site installation and use.
The plate possesses inherent oxidation and weather resistance, sufficient to meet basic rust-prevention needs for short-term outdoor use. However, for harsh environments—such as coastal areas with salt spray, long-term high humidity, or exposure to acids and alkalis—we recommend applying anti-corrosion treatments like painting or galvanizing. This significantly extends the plate's service life and ensures long-term structural stability for the project.
Specializing in patterned steel production and cross-border trade, YS STEEL provides high-safety, high-stability and highly adaptable anti-slip load-bearing patterned steel plates and customized steel solutions for global engineering and industrial clients, supported by mature hot rolling technology, refined quality control standards and comprehensive deep processing & cross-border delivery systems.
We deliver rapid response, accurate implementation and guaranteed quality for spot bulk procurement, large-scale engineering supporting and personalized deep processing customization. Global merchants are welcome to inquire and negotiate for long-term trustworthy and mutually beneficial in-depth strategic cooperation.
