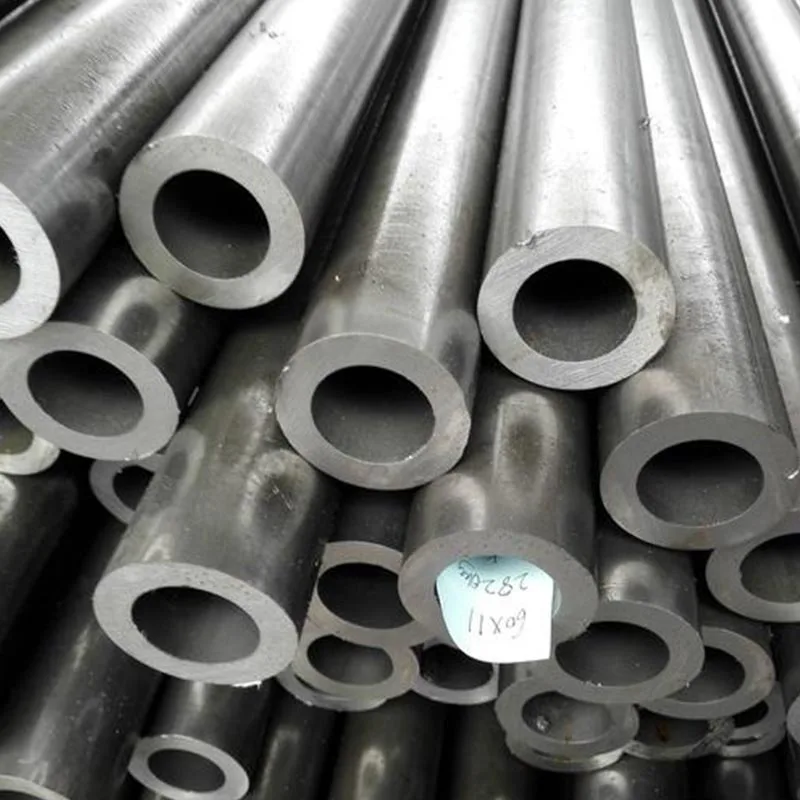

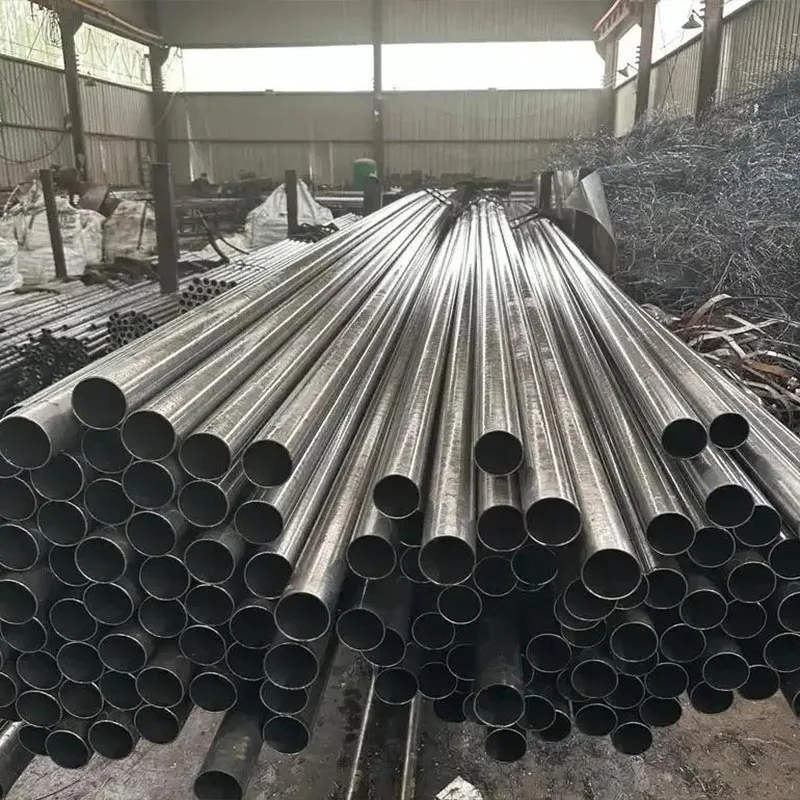

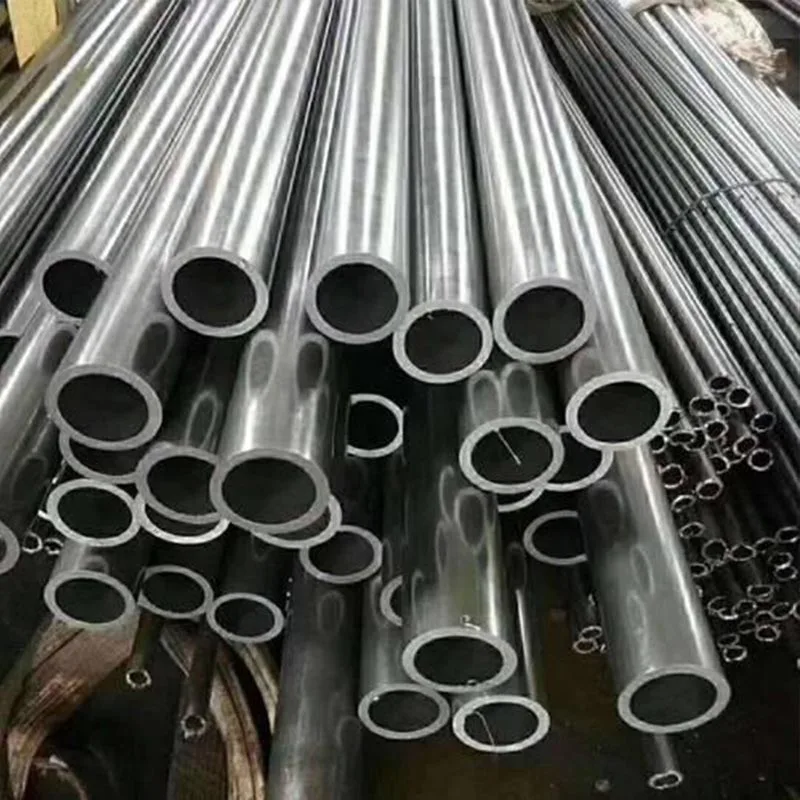

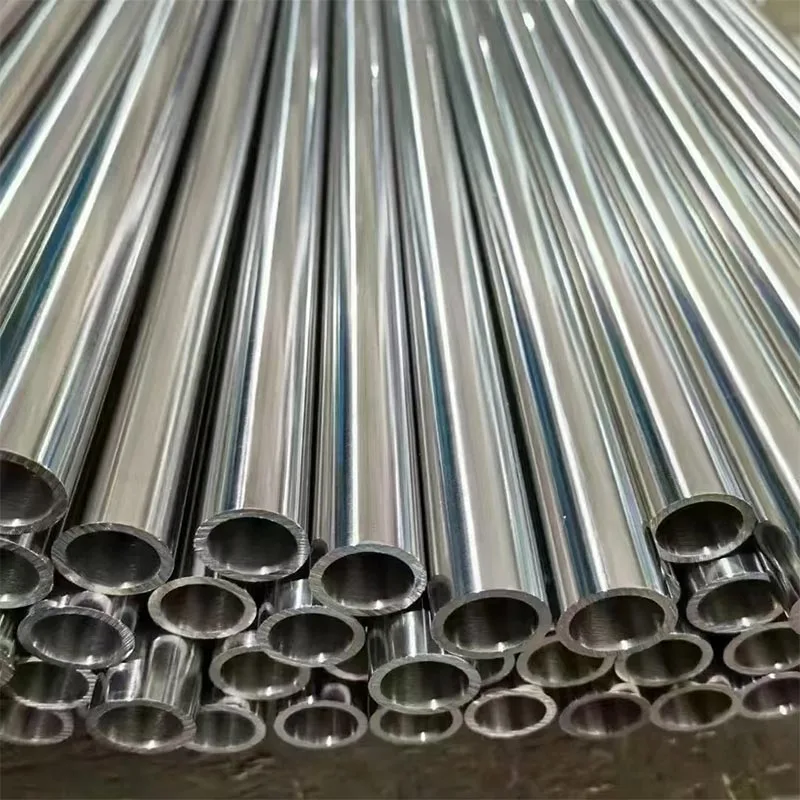

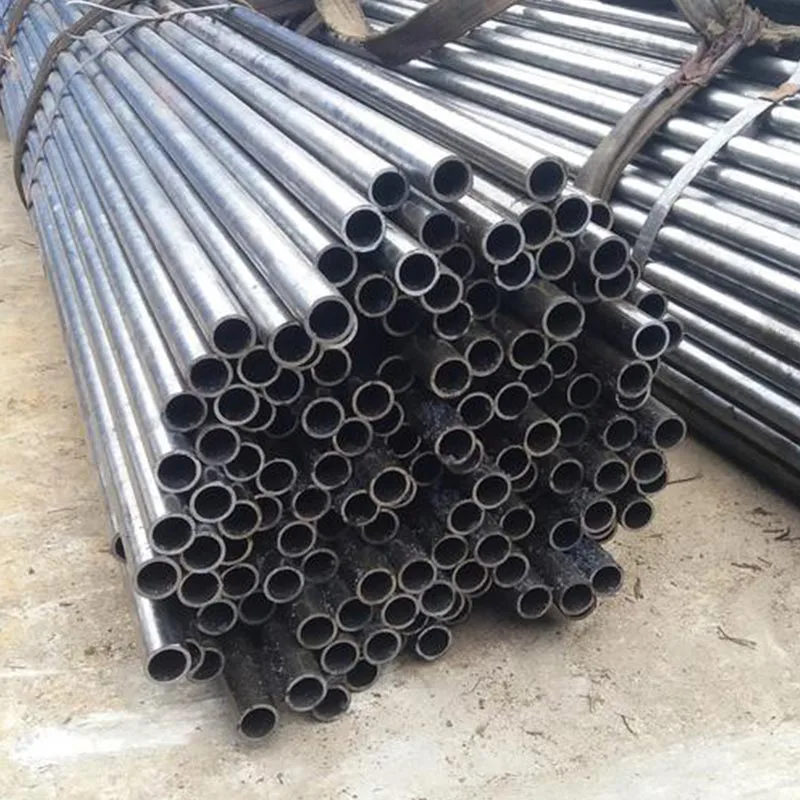

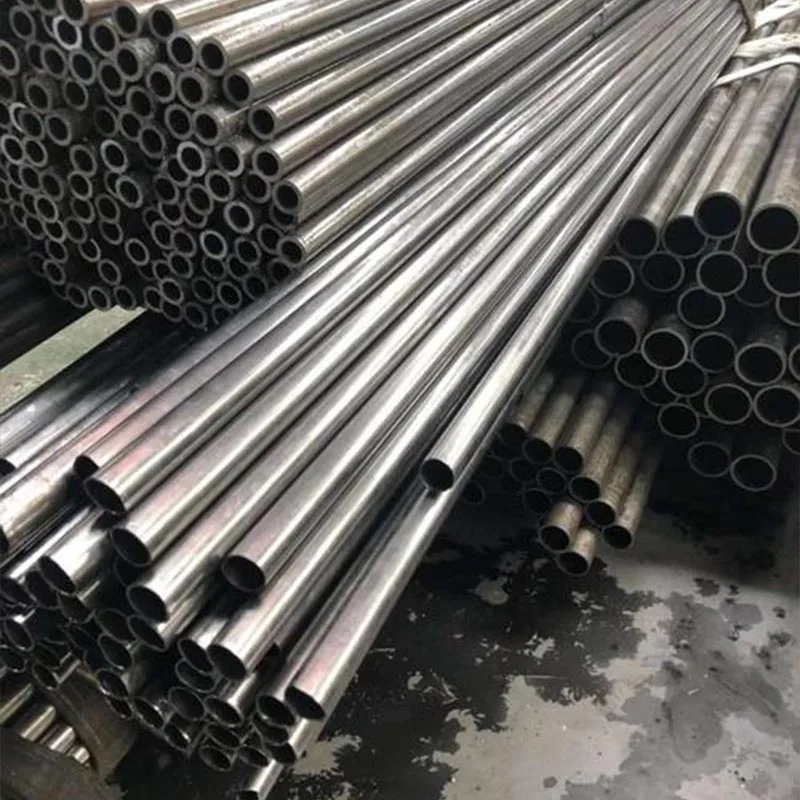

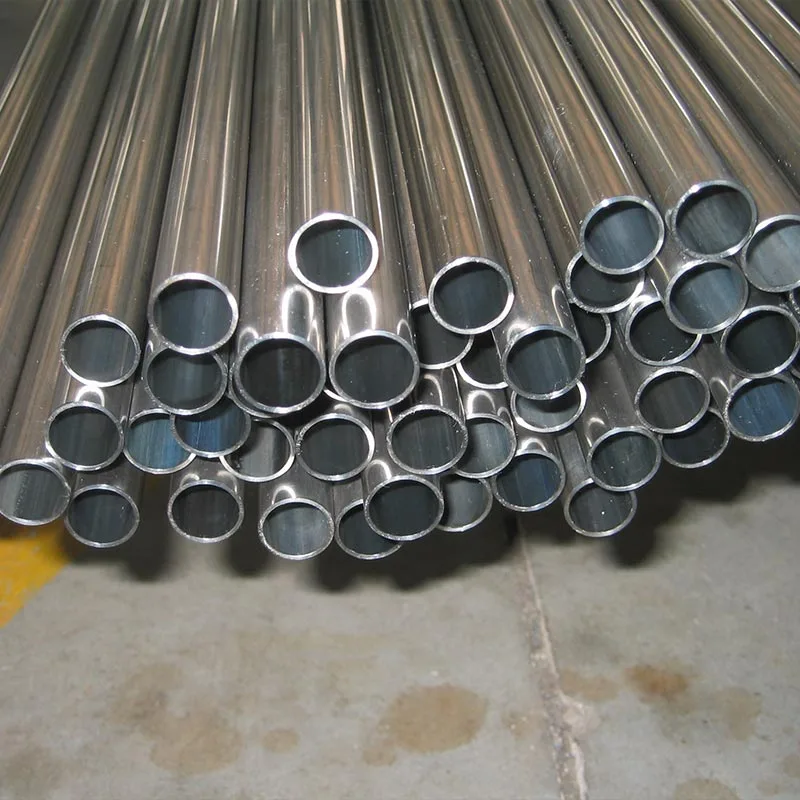

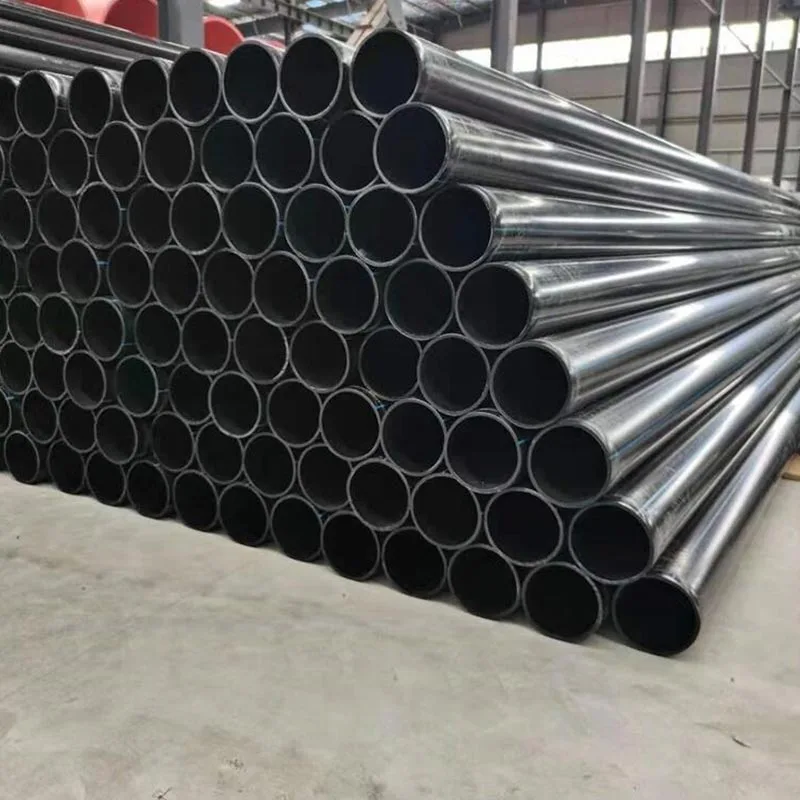

Cold-Rolled Seamless Steel Pipes are made from high-quality hot-rolled seamless base pipes through multiple passes of room-temperature cold rolling, stress relief heat treatment, mirror polishing, CNC size correction, and non-destructive testing. This effectively eliminates common defects in ordinary hot-rolled pipes such as high-temperature oxidation, dimensional deformation, rough surfaces, and uneven wall thickness.
Our products are widely used in hydraulic and pneumatic systems, automotive precision components, automated intelligent equipment, precision instruments, and low-temperature industrial facilities. All products comply with international standards and support standard inventory supply, non-standard customization, and one-stop precision deep processing export services.
Multi-roll CNC closed-loop cold rolling holds diameter and wall thickness tolerance within ±0.05mm and straightness within 0.3mm/m. The pipe needs no secondary turning, straightening or dimensional correction and can go directly into hydraulic cylinder barrels, precision shaft sleeves and interference-fit components. This removes assembly jamming, seal leakage and fitting deviation at the source.
Full room-temperature forming plus mirror polishing leaves no high-temperature oxide scale, pitting, folds or scratches. Inner and outer surfaces reach Ra 0.4–0.8μm. No pickling or painting is needed before assembly, so there is no impurity shedding or medium contamination, meeting the cleanliness requirements of hydraulic systems, precision instruments and high-end structural components.
Controlled cold rolling work hardening refines the grain structure and raises strength, hardness and tensile performance above equivalent hot-rolled seamless pipe. The dense, uniform structure improves deformation resistance, wear resistance and fatigue resistance under alternating loads. In hydraulic and pneumatic equipment with frequent starts and reciprocating motion, this reduces component wear and extends service life.
Stress-relief heat treatment removes cold rolling residual stress and uniformizes the internal structure, giving the pipe low-temperature anti-embrittlement performance. Under low temperature, alpine and alternating temperature conditions, the pipe avoids hardening, cracking and plastic failure, with stable dimensions and mechanical properties. Suitable for alpine outdoor equipment, low-temperature hydraulic systems and cold chain machinery.
Precise dimensions, clean surfaces and uniform material texture give the pipe stable processing performance across fine turning, boring, grinding, bending, welding, electroplating and stamping. Material loss is low and finished-product yield is high. Batch consistency supports automated assembly line mass production and reduces rework and scrap.
Production follows GB/T3639, GB/T8162, ASTM A53 and EN10216. Each batch undergoes dimensional checking, appearance screening, hydrostatic testing, eddy current flaw detection, mechanical performance testing and spectral analysis. EN10204 3.1 English qualification documents and test reports ship with every batch for full traceability, meeting European and American manufacturer acceptance standards and global customs clearance requirements.
Hydraulic cylinder barrels, pneumatic control components, and precision shaft sleeves where inner diameter accuracy and surface finish determine seal performance.
Transmission shaft components, shock-absorbing sleeves, and structural parts produced on automated machining lines.
Precision parts for excavators, loaders and other heavy equipment requiring dimensional consistency and wear resistance.
Equipment frames, guide sleeves and guide parts for automated and intelligent production lines.
Instrument housings, bearing sleeves and components requiring high cleanliness and low deformation.
Cold chain machinery, alpine outdoor equipment and low-temperature hydraulic systems requiring anti-embrittlement performance.
Parts requiring tight tolerance, mirror surface or direct assembly without secondary turning or correction.
| Comparison Item | Hot-Rolled Seamless Pipe | Cold-Rolled Seamless Pipe |
| Forming Temperature | Above recrystallization temperature | Room temperature |
| Dimensional Tolerance | Standard mill tolerance | Micron-level, down to ±0.05mm |
| Straightness | Standard | Up to 0.3mm/m |
| Surface Finish | Pickled matte, may have mill scale | Bright, oxide-free, Ra 0.4–0.8μm |
| Wall Thickness Range | 2.0mm–30mm | 1.0mm–20mm |
| Outer Diameter Range | 18mm–630mm | 10mm–219mm |
| Mechanical Properties | Higher pressure & temperature resistance | Higher strength & hardness via work hardening |
| Internal Stress | Low | Eliminated by stress-relief heat treatment |
| Low-Temperature Performance | Standard | Enhanced anti-embrittlement |
| Machinability | Requires secondary turning/finishing | Direct assembly, no secondary correction |
| Cost | Lower | Higher |
| Lead Time | Shorter for standard sizes | Longer for tight-tolerance orders |
| Best Suited For | Petrochemical, thermal power, marine engineering, pressure vessels, large-diameter high-pressure transmission | Hydraulic cylinders, pneumatic systems, automotive precision parts, automation equipment, precision instruments |
Selection Guide:
For high-pressure, high-temperature, large-diameter transmission and heavy structural applications → Hot-rolled seamless pipe.
For precision assembly, zero-leakage hydraulic systems, mirror surface and tight tolerance requirements → Cold-rolled seamless pipe.
Combined Use: Many equipment manufacturers use hot-rolled pipe for the main pressure-bearing body and cold-rolled pipe for precision moving parts such as cylinder barrels and guide sleeves.
Project Overview: In 2025, we undertook a precision hydraulic cylinder tube order for a professional hydraulic equipment manufacturer in Poland, Europe. The tubes are applied in high-pressure hydraulic systems of construction machinery with extremely strict requirements on inner diameter accuracy, straightness and surface finish to eliminate sealing leakage and equipment jamming caused by burrs and dimensional deviation.
Solution: We supplied customized GB/T3639 high-precision cold rolled seamless bright tubes with one-by-one micron-level tolerance screening, pre-delivery inner and outer wall precision polishing, dimensional calibration and full non-destructive testing, fully complying with EU precision hydraulic component standards.
Project Result: 150 tons of precision-grade cold rolled tubes were delivered in batch with 100% assembly compatibility and zero equipment leakage or failure. The products passed EU CE third-party acceptance at one time, establishing long-term strategic supply cooperation.
Project Overview: A precision component supporting project for transmission shafts, shock-absorbing sleeves and structural parts for a large Vietnamese auto parts factory. The client required tubes with uniform strength, high dimensional consistency and zero surface defects to adapt to automated precision machining and high-speed operation, ensuring the stability and service life of automotive parts.
Solution: We selected high-quality 20# and 45# GB standard cold rolled seamless tubes with unified batch mechanical and appearance standards, providing fixed-length precision cutting, deburring and precision straightening services together with complete English test certificates to ensure high batch consistency.
Project Result: A total of 120 tons of precision tubes were delivered with finished product yield far exceeding client expectations, effectively improving automotive part qualification rate and reducing processing loss. We have obtained continuous repeat orders from the client.
Project Overview: An intelligent automation equipment manufacturing project in UAE, Middle East. The tubes are used for precision equipment frames, guide sleeves and pneumatic actuator components, requiring high precision, flatness, wear resistance and low deformation for high-frequency reciprocating precision assembly and operation.
Solution: We adopted high-strength Q345B cold rolled seamless tubes with strictly controlled roundness, straightness and wall thickness tolerance. Pre-delivery stress relief treatment eliminates deformation during processing and application, fully meeting high-end automation equipment precision assembly standards.
Project Result: 85 tons of high-precision cold rolled tubes were delivered with accurate dimensions and stable performance, achieving 100% assembly accuracy compliance. The products supported smooth equipment commissioning and market launch in the Middle East, securing annual fixed supply cooperation.
1. Professional precision pipe foreign trade and technical team provides one-stop services including full English communication, precision parameter consultation and customized engineering solutions;
2. High-end OEM/ODM precision deep processing services including fine cutting, mirror polishing, boring, chamfering, straightening and anti-rust packaging are fully available;
3. Focused on precision pipe bulk export with stable production capacity and controllable accuracy to ensure consistent batch quality for high-end orders;
4. Complete international authoritative certificates and English test reports are delivered with goods for smooth global customs clearance and project acceptance;
5. Refined full-process order management strictly meets the strict quality and delivery requirements of global high-end clients.
Cold-Rolled Seamless Steel Pipes feature high accuracy, zero defects and uniform stable mechanical performance with perfect assembly fitness, eliminating friction, leakage and abnormal loss during equipment operation and greatly reducing failure rate and shutdown maintenance frequency. With excellent fatigue resistance, wear resistance and deformation resistance, the tubes maintain stable dimensions during long-term service, extending the service life by more than 50% compared with ordinary pipes and effectively reducing full-life-cycle maintenance and replacement costs.
Full personalized customization is available. We manufacture special outer diameters, wall thicknesses, fixed lengths and tight tolerance products according to client drawings, samples or engineering parameters. We also provide full-set precision deep processing services including mirror polishing, internal and external fine boring, deburring, straightening, NDT inspection and anti-rust film coating, delivering ready-to-assemble finished pipes that fully meet high-end precision equipment processing and installation standards.
Standard stock specifications can be packaged and shipped within 3–7 working days. Regular precision customized orders take 15–25 working days. Special tight tolerance, ultra-precision polishing and complex deep processing orders require 25–30 working days. Equipped with independent precision production lines and flexible scheduling mechanisms, we prioritize urgent orders to fully guarantee client project progress and delivery timeline.
Each shipment is attached with complete official English compliance documents, including EN10204 3.1 material test certificates, mechanical performance reports, ultrasonic & eddy current NDT reports, spectral analysis reports, export customs declaration documents, packing lists and commercial invoices. All files are authentic and traceable, fully supporting global customs clearance and third-party project acceptance in Europe, America, Southeast Asia, the Middle East, Africa and other regions.
Based on the high-finish and high-precision characteristics of cold rolled tubes, we adopt exclusive precision export packaging: pipe ends are fitted with dust-proof and anti-rust plugs, each pipe is wrapped with independent protective film, all tubes are layered and isolated, and finally reinforced with steel strips and packed in sealed wooden pallets or cases. This professional packaging completely avoids scratch, rust, deformation and tolerance deviation during long-distance ocean transportation and multi-transit handling.
We provide free samples for client material, dimension, precision and performance testing to support pre-project verification and trial production. Samples are free of charge while international express freight is borne by the buyer. Sample-related expenses can be deducted from subsequent bulk orders to reduce clients’ early R&D and verification costs.
We support multiple compliant international settlement methods, mainly including T/T wire transfer and irrevocable sight L/C. Flexible payment terms can be negotiated for long-term premium clients. Available incoterms include FOB, CIF, CFR and EXW, adapting to clients’ local logistics, customs clearance and procurement procedures to simplify global trade cooperation.
YS STEEL focuses on providing high-accuracy, high-consistency and cost-effective one-stop precision Cold-Rolled Seamless Steel Pipes for global precision machinery, hydraulic equipment, automotive manufacturing and automation engineering industries.
For stock inquiry, precision tolerance parameters, bulk project quotations and customized deep processing solutions, please contact our professional foreign trade technical team for fast response and tailored compliant export services.
